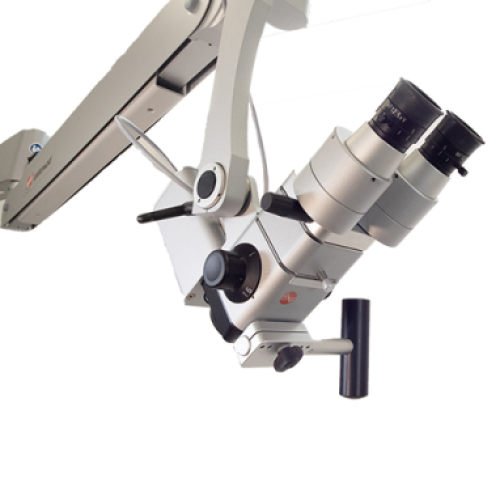

Karl Kaps microscope

Karl Kaps microscope

The economical modern version for ENT practice and minor operations.

Because the illumination unit of the Microscope is integrated into the swivel arm, the Karl Kaps microscope can be mounted on the wall in a space-saving fashion.

Contact us
Benefits at a glance

Benefits at a glance

  • Budget friendly
  • Precise and simple handling
  • Optimal integration into your practice through wall or ceiling mounting, adaptation for ENT units or roller tripods
  • Simple and rapid replacement of the lenses (in 50 mm succession) and of the eyepieces
  • Integrated tilt switch
  • Direct adaptation of existing endoscopic cameras via endocoupler
  • Integrated video system “Vision”
  • Adaptation for all standard C-mount cameras

Technical specifications

Illumination

Coaxial cold light illumination (15 V / 150 W) with spare bulb LED illumination (optional)

Lenses

Changeable lenses from 200 mm to 400 mm in steps of 50 mm Lens f = 200 mm and f = 250 mm with integrated focusing (14 mm) Kaps Variflex-100 objective lens with a focal length of 220 - 320 mm (optional)

Binocular tubes

Straight tube f = 125 mm or f = 159 mm, inclined tube f = 182 mm 0 - 210° on request

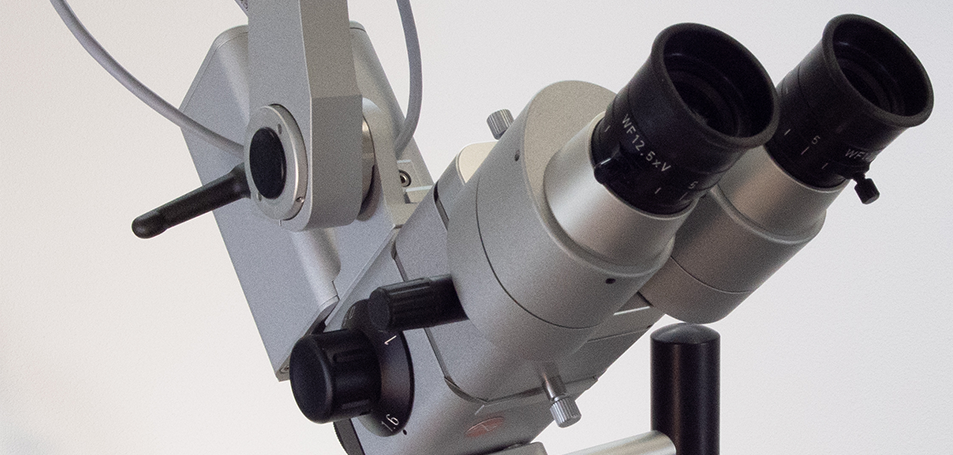

Eyepieces

Eyepieces WF 12.5 x V or WF 10 x V (with diopter adjustment)

Magnification

3-step magnification changer, 5-step magnification changer or manual zoom 1 - 6

Fine focusing

Manual fine focusing 40 mm (optional)

Secondary viewer

Binocular or monocular

Video camera

Adaptation of C-mount video cameras via beam splitter and TV tube

Integrated endoscopic adapter

For direct adaption for existing endoscopic cameras

Iris diaphragm, green filter, spot illumination

Optional
